4GV UN Variation Box with Corrugated Insert – 9.625″ x 9.625″ x 19.5″


Capacity: 1x128oz (total: 1 gal/3.8 ltr) or 20lb/9.27kg  |  Max Box Weight: 23.8lbs/12.9kg
Box Inner Dimensions: 9.63″x9.63″x19.5″/24.46×24.46×49.53cm  |  Liner Bag Included: 43″x48″/110x122cm
Transport: PG I, II, III, Liquids, Solids, Articles & Lithium Batteries  |  UN Rating: 4GV/X12.9/S
Complies with: IATA, DOT 49 CFR, IMDG, ICAO, TDG Regulations, UPS & FedEx requirements

Price Tab

Product Code: PK-105SPI
Qty.Discount %Price Per


  • Flexible variation packaging permits various sizes & types of approved inner containers to be used for shipping hazardous materials.
  • Suitable for Packing Group I, II, & III, Liquids, Solids, Articles & Lithium Batteries
  • Complies with: IATA (, DOT 49 CFR (178.601(g)(2)), IMDG (, ICAO (6;4.1.7), TDG (TP14850 & UN Model (
  • Meets UPS & FedEx Hazardous Materials/ Dangerous Goods packaging requirements

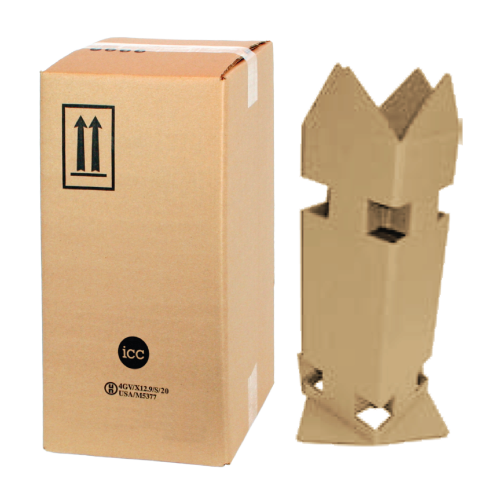

4GV UN Variation Box Details

  • Fibreboard Box Inner Dimensions: 9.625″x9.625″x19.5″ / 24.46×24.46×49.53cm
  • Leak-proof/sift-proof Liner Bag Included: 43″x48″ / 110x122cm
  • 4GV Test Configuration: 1 x 128 oz containers
  • Capacity: 1x128oz (total liquid capacity: 1 gal/3.8 ltr) or 20lb/9.27kg
  • Maximum Gross Weight: 23.8lbs/12.9kg
  • Minimum Cushioning Distance: Box Top: 3.85”/9.7cm | Box Bottom: 2.5″/6.3cm | Box Sides: 1.7”/4.3cm
  • Components included: Outer box, Leak-proof/Sift-proof liner bag, Insert
  • Components required: Vermiculite absorbent/cushioning material, 3M #375 48mm clear tape
  • Quantity of absorbent used must be able to absorb all liquids
  • UN Rating: 4GV/X12.9/S
  • Bursting Strength: 350 B/C

** For air shipment of liquids, inner containers must meet pressure, secondary closure, and leak-proof liner requirements (See IATA DGR Section 5 / ICAO TI Section 4 / US 49 CFR 173.27).

Packing Instructions are required for this product. Download the required packing instruction here.
For Box Certificates, click here to download.

Additional information

Weight 2.7 lbs
Dimensions 30.25 × 19.5 × 1 in

Priced Per

Maximum Gross Weight

Bursting Strength

Included Liner Bag

UN Specifications
