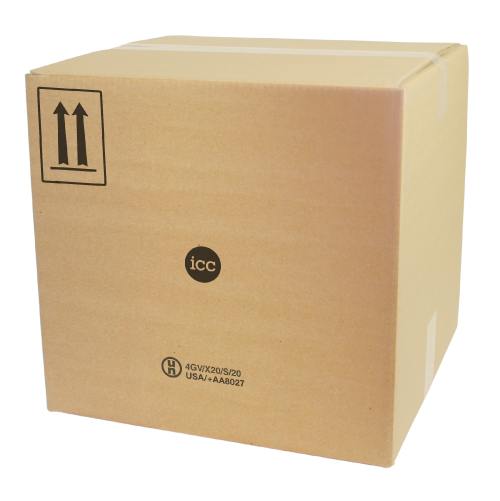

4GV UN Variation Box – 18″ x 13″ x 17″

$19.75

Capacity: 4x64oz (total: 2 gal/7.57 ltr) or 27.8lb/12.61kg  |  Max Box Weight: 44.093lbs/20kg
Box Inner Dimensions: 18″x13″x17″/45.7x33x43cm  |  Liner Bag Included: 43″x48″/110x122cm
Transport: PG I, II, III, Liquids, Solids, Articles & Lithium Batteries  |  UN Rating: 4GV/X20/S
Complies with: IATA, DOT 49 CFR, IMDG, ICAO, TDG Regulations, UPS & FedEx requirements

Price Tab

Product Code: PK-22SP
Qty.Discount %Price Per
50-9910%$17.78
100-49919%$16.00
500-99939%$12.05
1000+40%$11.85

Description

  • Flexible variation packaging permits various sizes & types of approved inner containers to be used for shipping hazardous materials.
  • Suitable for Packing Group I, II, & III, Liquids, Solids, Articles & Lithium Batteries
  • Complies with: IATA (6.3.1.2.8), DOT 49 CFR (178.601(g)(2)), IMDG (6.1.5.1.7), ICAO (6;4.1.7), TDG (TP14850 5.3.2.1) & UN Model (6.1.5.1.7)
  • Meets UPS & FedEx Hazardous Materials/ Dangerous Goods packaging requirements

4GV UN Variation Box Details

  • Fibreboard Box Inner Dimensions: 18″x13″x17″ / 45.7x33x43cm
  • Leak-proof/sift-proof Liner Bag Included: 43″x48″ / 110x122cm
  • 4GV Test Configuration: 4 x 64 oz containers
  • Capacity: 4x64oz (total liquid capacity: 2 gal/7.57 ltr) or 27.8lb/12.61kg
  • Maximum Gross Weight: 44.093lbs/20kg
  • Minimum Cushioning Distance: Box Top: 3.5”/8.8cm | Box Bottom: 3″/7.6cm | Box Sides: 1”/2.5cm | Between Containers: 2.625”/6.6cm
  • Components included: Outer box, Leak-proof/Sift-proof liner bag
  • Components required: Vermiculite absorbent/cushioning material, 3M #375 48mm clear tape or Venom Reinforced Water Activated Kraft Tape
  • Quantity of absorbent used must be able to absorb all liquids
  • UN Rating: 4GV/X20/S
  • Bursting Strength: 275 B/C

** For air shipment of liquids, inner containers must meet pressure, secondary closure, and leak-proof liner requirements (See IATA DGR Section 5 / ICAO TI Section 4 / US 49 CFR 173.27).

Packing Instructions are required for this product. Download the required packing instruction here.
For Box Certificates, click here to download.

Additional information

Weight 2.651 lbs
Dimensions 31.375 × 31.5 × 0.5 in
Dimensions

Priced Per

Maximum Gross Weight

Bursting Strength

Included Liner Bag

UN Specifications
