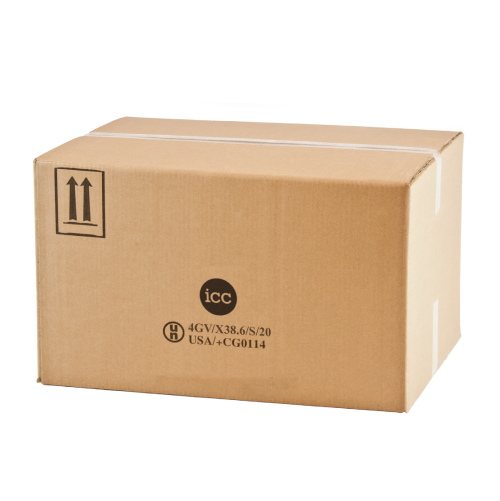

4GV UN Variation Box – 20.75″ x 20.75″ x 12.5″


Capacity: 4×1 gal (total: 4 gal/15 ltr) or 64.4lb/29.25kg  |  Max Box Weight: 85.0lbs/38.6kg
Box Inner Dimensions: 20.75″x20.75″x12.5″/52.7×52.7×31.75cm  |  Liner Bag Included: 43″x48″/110x122cm
Transport: PG I, II, III, Liquids, Solids, Articles & Lithium Batteries  |  UN Rating: 4GV/X38.6/S
Complies with: IATA, DOT 49 CFR, IMDG, ICAO, TDG Regulations, UPS & FedEx requirements

Price Tab

Product Code: PK-24SP Categories: ,
Volume Pricing
Buy 50 – save 10%
Buy 100 – save 19%
Buy 500 – save 39%
Buy 1000 – save 40%
More pricing available by phone. 888.442.9628


  • Cost-Effective and Flexible, variation packaging permits various sizes and types of approved inner containers to be used for shipping hazardous materials.
  • Suitable for Packing Group I, II, & III, Liquids, Solids, Articles & Lithium Batteries
  • Complies with: IATA (, DOT 49 CFR (178.601(g)(2)), IMDG (, ICAO (6;4.1.7), TDG (TP14850 & UN Model (
  • Meets UPS & FedEx Hazardous Materials/ Dangerous Goods packaging requirements

4GV UN Variation Box Details

  • Fibreboard Box Inner Dimensions: 20.75″x20.75″x12.5″ / 52.7×52.7×31.75cm
  • Leak-proof/sift-proof Liner Bag Included: 43″x48″ / 110x122cm
  • 4GV Test Configuration: 4 x 1 gal containers
  • Capacity: 4×1 gal (total liquid capacity: 4 gal/15 ltr) or 64.4lb/29.25kg
  • Maximum Gross Weight: 85.0lbs/38.6kg
  • Minimum Cushioning Distance: Box Top/Bottom: 2.25”/5.7cm | Box Sides: 2.25”/5.7cm | Between Containers: 2.25”/5.7cm
  • Components included: Outer box, Leak-proof/Sift-proof liner bag
  • Components required: Vermiculite absorbent/cushioning material, 3M #375 48mm clear tape
  • Quantity of absorbent used must be able to absorb all liquids
  • UN Rating: 4GV/X38.6/S
  • Bursting Strength: 275 B/C

** For air shipment of liquids, inner containers must meet pressure, secondary closure, and leak-proof liner requirements (See IATA DGR Section 5 / ICAO TI Section 4 / US 49 CFR 173.27).

Packing Instructions are required for this product. Download the required packing instruction here.
For Box Certificates, click here to download.

Additional information

Weight 8 lbs

Priced Per

Actual Weight

Maximum Gross Weight

Bundle Quantity

Skid Quantity

Bursting Strength

Included Liner Bag

UN Specifications

Required Cushioning Distance
