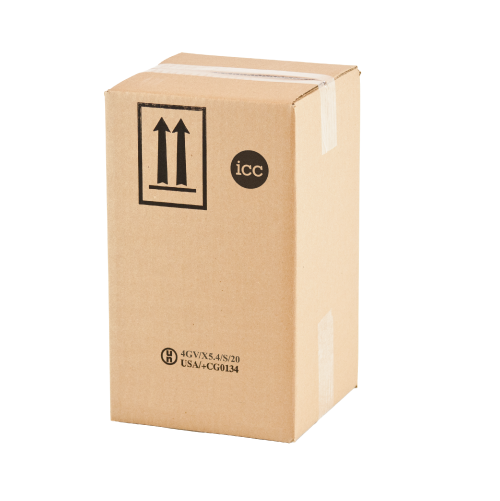

4GV UN Variation Box – 7.875″ x 7.875″ x 13.5625″

$8.60

Capacity: 1x32oz (total: 0.25 gal/0.945 ltr) or 7.63lb/3.46kg  |  Max Box Weight: 11.9lbs/5.4kg
Box Inner Dimensions: 7.875″x7.875″x13.5628″/20x20x34.4cm  |  Liner Bag Included: 24″x24″/61x61cm
Transport: PG I, II, III, Liquids, Solids, Articles & Lithium Batteries  |  UN Rating: 4GV/X5.4/S
Complies with: IATA, DOT 49 CFR, IMDG, ICAO, TDG Regulations, UPS & FedEx requirements

Price Tab

Product Code: PK-8SP
Item Qty. Discount % Price Per Unit
50-99 10% $7.04
100-499 19% $6.33
500-999 39% $4.77
1000+ 40% $4.69

Description

  • Flexible variation packaging permits various sizes & types of approved inner containers to be used for shipping hazardous materials.
  • Suitable for Packing Group I, II, & III, Liquids, Solids, Articles & Lithium Batteries
  • Complies with: IATA (6.3.1.2.8), DOT 49 CFR (178.601(g)(2)), IMDG (6.1.5.1.7), ICAO (6;4.1.7), TDG (TP14850 5.3.2.1) & UN Model (6.1.5.1.7)
  • Meets UPS & FedEx Hazardous Materials/ Dangerous Goods packaging requirements

4GV UN Variation Box Details

  • Fibreboard Box Inner Dimensions: 7.875″x7.875″x13.5628″ / 20x20x34.4cm
  • Leak-proof/sift-proof Liner Bag Included: 24″x24″ / 61x61cm
  • 4GV Test Configuration: 1 x 32 oz containers
  • Capacity: 1x32oz (total liquid capacity: 0.25 gal/0.945 ltr) or 7.63lb/3.46kg
  • Maximum Gross Weight: 11.9lbs/5.4kg
  • Minimum Cushioning Distance: Box Top/Bottom: 2”/5cm | Box Sides: 2”/5cm | Between Containers: 2”/5cm
  • Components included: Outer box, Leak-proof/Sift-proof liner bag
  • Components required: Vermiculite absorbent/cushioning material, 3M #375 48mm clear tape or Central Brand #240 water-activated reinforced Kraft tape
  • Quantity of absorbent used must be able to absorb all liquids
  • UN Rating: 4GV/X5.4/S
  • Bursting Strength: RSC 275C

** For air shipment of liquids, inner containers must meet pressure, secondary closure, and leak-proof liner requirements (See IATA DGR Section 5 / ICAO TI Section 4 / US 49 CFR 173.27).

Packing Instructions are required for this product. Download the required packing instruction here.
For Box Certificates, click here to download.

Additional information

Weight 0.52 lbs
Dimensions 22 × 16 × 0.25 in
Dimensions

Priced Per

Maximum Gross Weight

Bursting Strength

Included Liner Bag

UN Specifications
