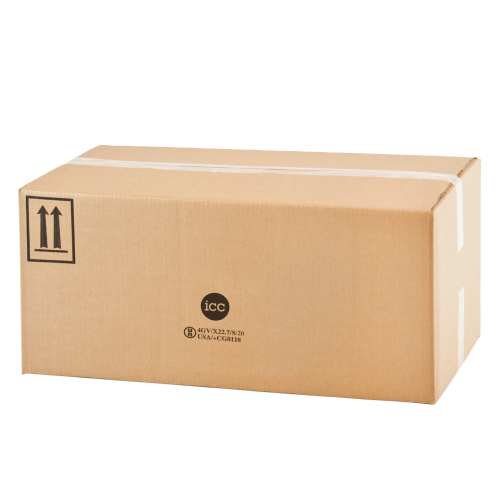

4GV UN Variation Box – 23.75″ x 15″ x 10.9375″


Capacity: 6x32oz (total: 1.5 gal/5.678 ltr) or 31.9lb/14.47kg  |  Max Box Weight: 50.04lbs/22.7kg
Box Inner Dimensions: 23.75″x15″x10.9375″/60.325x38x27.94cm  |  Liner Bag Included: 43″x48″/110x122cm
Transport: PG I, II, III, Liquids, Solids, Articles & Lithium Batteries  |  UN Rating: 4GV/X22.7/S
Complies with: IATA, DOT 49 CFR, IMDG, ICAO, TDG Regulations, UPS & FedEx requirements

Price Tab

Product Code: PK-20SP
Qty.Discount %Price Per


  • Flexible variation packaging permits various sizes & types of approved inner containers to be used for shipping hazardous materials.
  • Suitable for Packing Group I, II, & III, Liquids, Solids, Articles & Lithium Batteries
  • Complies with: IATA (, DOT 49 CFR (178.601(g)(2)), IMDG (, ICAO (6;4.1.7), TDG (TP14850 & UN Model (
  • Meets UPS & FedEx Hazardous Materials/ Dangerous Goods packaging requirements

4GV UN Variation Box Details

  • Fibreboard Box Inner Dimensions: 23.75″x15″x10.9375″ / 60.325x38x27.94cm
  • Leak-proof/sift-proof Liner Bag Included: 43″x48″ / 110x122cm
  • 4GV Test Configuration: 6 x 32 oz containers
  • Capacity: 6x32oz (total liquid capacity: 1.5 gal/5.678 ltr) or 31.9lb/14.47kg
  • Maximum Gross Weight: 50.04lbs/22.7kg
  • Minimum Cushioning Distance: Box Top: 1.5”/3.8cm | Bottom: 1.1875″/3.016cm | Box Sides: 2.5”/6.35cm | Between Containers: 2.5”/6.35cm
  • Components included: Outer box, Leak-proof/Sift-proof liner bag
  • Components required: Vermiculite absorbent/cushioning material, 3M #375 48mm clear tape or Venom Reinforced Water Activated Kraft Tape
  • Quantity of absorbent used must be able to absorb all liquids
  • UN Rating: 4GV/X22.7/S
  • Bursting Strength: RSC 275B/C

** For air shipment of liquids, inner containers must meet pressure, secondary closure, and leak-proof liner requirements (See IATA DGR Section 5 / ICAO TI Section 4 / US 49 CFR 173.27).

Packing Instructions are required for this product. Download the required packing instruction here.
For Box Certificates, click here to download.

Additional information

Weight 2.67 lbs
Dimensions 39.25 × 27.38 × 0.5 in

Priced Per

Maximum Gross Weight

Bursting Strength

Included Liner Bag

UN Specifications
